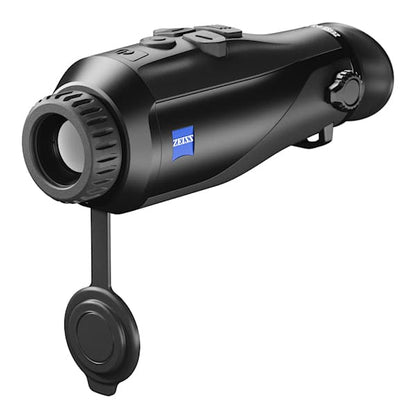

Zeiss DTI 1/19 Thermal Imaging Camera

The Zeiss DTI 1/19 Thermal Imaging Camera is one of the two entry level DTI models. The choice for wider field of view, its 19mm f/1.0 objective lens has an optical magnification of 1.8x, with a field of view of 720' at 1,000 yards. The DTI 1/19 has a 4x digital zoom range that is adjustable in 0.5x increments, so total magnification goes from 1.8x to 7.2x. The sensor in the DTI 1/19 is 384x288 px with a sensor pixel pitch of 12 µm. Its Noise Equivalent Temperature Difference (NETD) is <=35 mK. The image is processed with Zeiss' Zeiss Smart Image Processing (ZSIP) and delivered to a 1280x960 px LCOS display. You focus the incident image (image focus) and the diopter (screen focus) with separate dials. You can view the image in any of 8 color modes and use personalized settings to choose your own default color mode and digital zoom level. Electronically, the DTI 1/19 has a built-in Lithium-ion battery that has a 6.5 hour life per charge, which is don by USB cable. The USB connection can also be used to download photos and videos or run off of an external power supply. Internal memory is 16 GB. The DTI 1/19 is also 2.4 GHz WiFi IEEE 802.11 b/g/n capable and can provide streaming images to cell phones with the Zeiss Hunting app installed. The DTI 1 is also available in the DTI 1/25 configuration with 2.5x optical magnification which gives up to 10.0x on digital zoom.
